DT74 Superior Broom Sweeper

Specifications

DT74 Superior Broom Sweeper

The Superior Broom has many features not found on any other Side Cast Sweepers, including low noise level in the cab, rear leaf spring suspension, and touch pad control panel for the remote mounted integrated hydraulic manifold that keeps the hydraulic heat and noise outside of the cab.

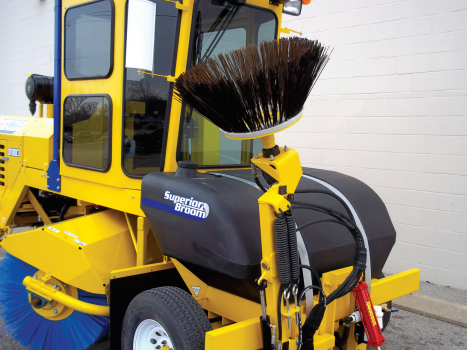

OPTIONAL GUTTER BRUSH

Gutter brush has 27 inch brush head with hydraulic power angle, tilt down pressure and float. Brush is mounted to front bumper for better operator visibility and folds up when not in use.



OPTIONAL SCRAPER BLADE

Cutting edge is 7 1/2” with power angle, down pressure & float positions for cleaning packed heavy material.



RADIATOR-OIL COOLER ACCESS DOOR

Standard swing out door for easy cleaning and maintenance of your radiator, oil cooler & A/C condenser are vital to dependable operation. Proper hydraulic oil temperatures are key to extending the life of your hydraulic components. Superior Broom makes it easy to keep your coolers clean.



TOW PACKAGE

Neutral shift for towing makes moving your Superior Broom easy with fold down tow hitch and safety chains.

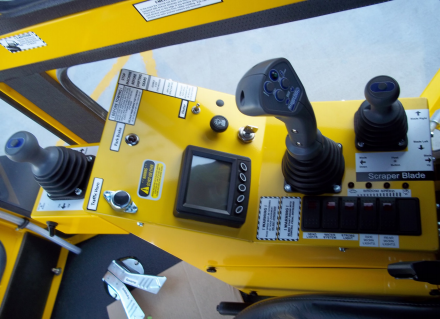

BROOM CONTROLS

Electronic joystick control for all broom functions with red LED lights indicating brush speed, full gauge package with tachometer, oil & water gauge, volt meter, fuel gauge and sealed rocker switches with red indicator lights.



OPTIONAL CONTROLS

Additional electronic joystick controls include front scraper blade and right side gutter brush attachment. All controls are located at operator’s station for easy access.

TRAVEL CONTROL

Dual hydraulic transmission foot controls are more responsive and comfortable for operator comfort.

EASY ENGINE ACCESS

Engine cover doors on right and left sides provide easy access for maintenance.



OPTIONAL BRUSH SIDE SHIFT

Brush will shift 12 inches from center right or left for sweeping outside tires. You can now avoid tire sidewall wear and have better operator visibility to the brush.



ENGINE:
John Deere diesel 4.5 liter (276 cid) 74 hp, turbo charged, Tier 4 Final
Caterpillar diesel 3.4 liter (208 cid) 74 hp, turbo charged, Tier 4 Final
Perkins diesel 3.4 liter (208 cid) 74 hp, turbo charged, Tier 4 Final
DIMENSIONS:
Weight: 5,300 lbs. standard unit (w/canopy)
Height – 103 inches (w/canopy)
Length – 172 inches
Width – 96 inches (transport)
CHASSIS:
Welded 6” channel w/gussets at all stress points. Certified roll over protection (ROPS) structure meets and exceeds all Federal Standards
STEERING:
Orbital; hydraulic power steering
HYDRAULIC TANK:
22 gallon capacity
FUEL TANK:
30 gallon capacity
COOLING SYSTEM:
Heavy duty vertically mounted radiator and oil cooler w/8,000 cfm suction fan
FRONT AXLE:
Heavy-duty truck type (full oscillating)
REAR AXLE:
3/4 Ton-heavy duty semi-float differential w/spring suspension system
WHEELS:
Four – 6 bolt (15” x 6”) steel spoke
TIRES:
Four radial ST225/75 R15 load range D

BRAKES:
Four wheel hydraulic w/dual master cylinder and mechanical parking brake.
TRANSMISSION:
Infinitely variable hydrostatic pump and motor driving a differential rear axle through a 2-speed gearbox.
Low range: 0-12 mph
High range: 0-34 mph
HYDRAULIC SYSTEM:
Load compensated piston pump
28 GPM w/2,500 PSI operating pressure
10 micron high pressure suction filter
BRUSH CORE:
8 foot all welded tubular construction
Direct drive motor enclosed in core (200 RPM)
Sweeping width: 96 inches
10” x 32” Prostran wafer type brush filler
SWEEPING ANGLE:
45 degrees (left and/or right)
Circle swing frame mounted on 10 heavy-duty sealed, tapered bearings with debris guards.
BRUSH COVER:
12 gauge steel, 140 degree full brush length with end plate covers and full length rock deflector
BROOM CONTROLS:
Electronic joystick control for brush on-off with trigger for float, push buttons for broom on/off and speed control. Broom lift, adjustable down pressure and swing right to left through joystick movement.
CONTROLS & ACCESSORIES:
Padded seat with arm rests and seat belts, dual element air cleaner & precleaner, 12 volt ignition system. 950 CCA battery and back-up alarm. Gauges include tachometer, hour meter, water temp, oil pressure, fuel and volt meter.
