8H Trench Box

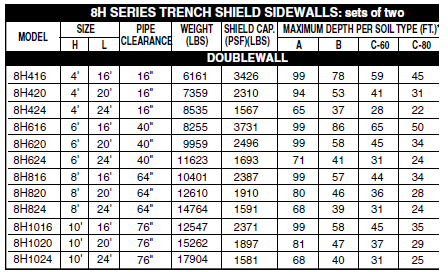

Specifications

8H Trench Box

The 8” wall series of trench shields, commonly referred to as a trench box, are of a non-rigid design with strategic reinforcements, providing protection at greater lengths in the deepest and most demanding of jobsites. These trench boxes are meant to be used with excavators in the 80,000 to 100,000 lb. range.



Top of the line trench shield box for going deep with heavy machinery.

For going deep, moving fast and making money, the GME 8H Series Trench Shield is the best you can buy.

This trench shield is engineered to the realities of profitable pipe laying. With high tensile steel, non-rigid design and strategic reinforcements, the GME 8H Series assures you of heavy duty performance in exacting conditions. No other trench box is comparably rated.



  • Full length hardwood inserts in top horizontal, and front vertical tubes
  • High tensile steel throughout
  • Trapped thru wall collar assemblies
  • Honey-comb inner structure
  • Clear-view front and rear spreaders
  • 4-Point lifting system
  • All certified by a Professional Engineer to meet OSHA Standards
  • Customizable
  • Stackable
