Sakai 414 Series

Specifications

Sakai 414 Series

Vibratory Single Drum Roller

Performance:

  • 74HP (55.0kW) water-cooled Cummins diesel engine
  • No DPF, no SCR
  • High traction capability ensures compaction in both forward and reverse-even on jobs with soft ground, slopes, or rough terrains
  • Manual traction control allows backing up steep slopes in reverse



Proven Compactive Performance:

  • Reaches target density in fewer roller passes
  • Provides higher centrifugal force and amplitude
  • Achieves uniform compaction throughout lift thickness



Low Operating Costs:

  • Durable, high quality components such as hydraulic, drum, and center-pin hitch assure longer life and lower maintenance costs
  • Sakai’s unique drum mounting system extends the life of the drum isolators



Operator Comfort and Safety:

  • Patented drum vibration isolation system and floating deck keep the operator free from vibration
  • Brake pedal comes standard for added safety



Convenience Features:

  • 12V power outlet standard



TypeOperating Wgt.Drum WidthEngine Power
SV414TF15,765 lbs67 in74 hp

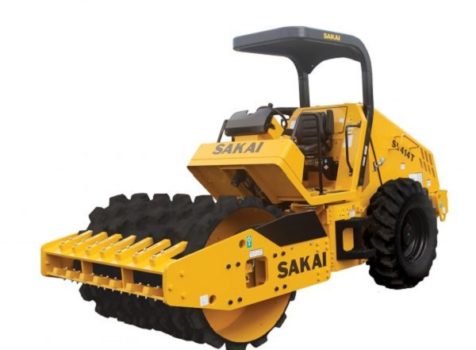

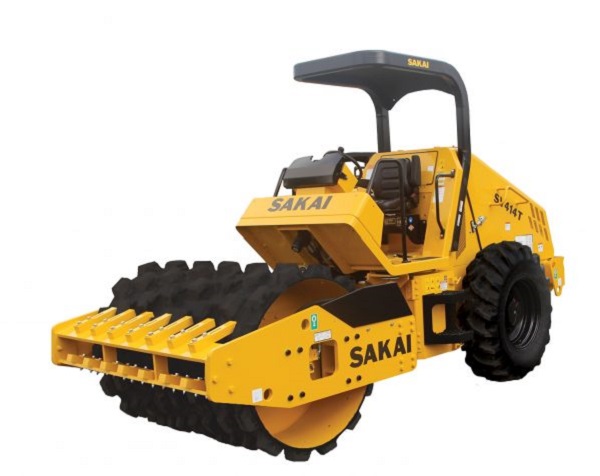

SV414T15,765 lbs67 in74 hp

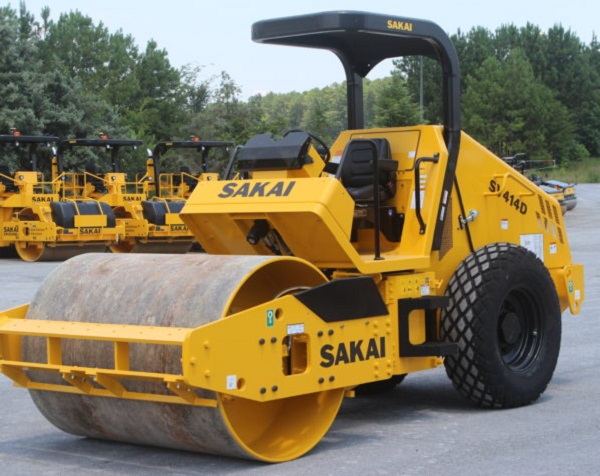

SV414D15,765 lbs67 in74 hp
