TM35 Power Mulcher

TM35 Power Mulcher

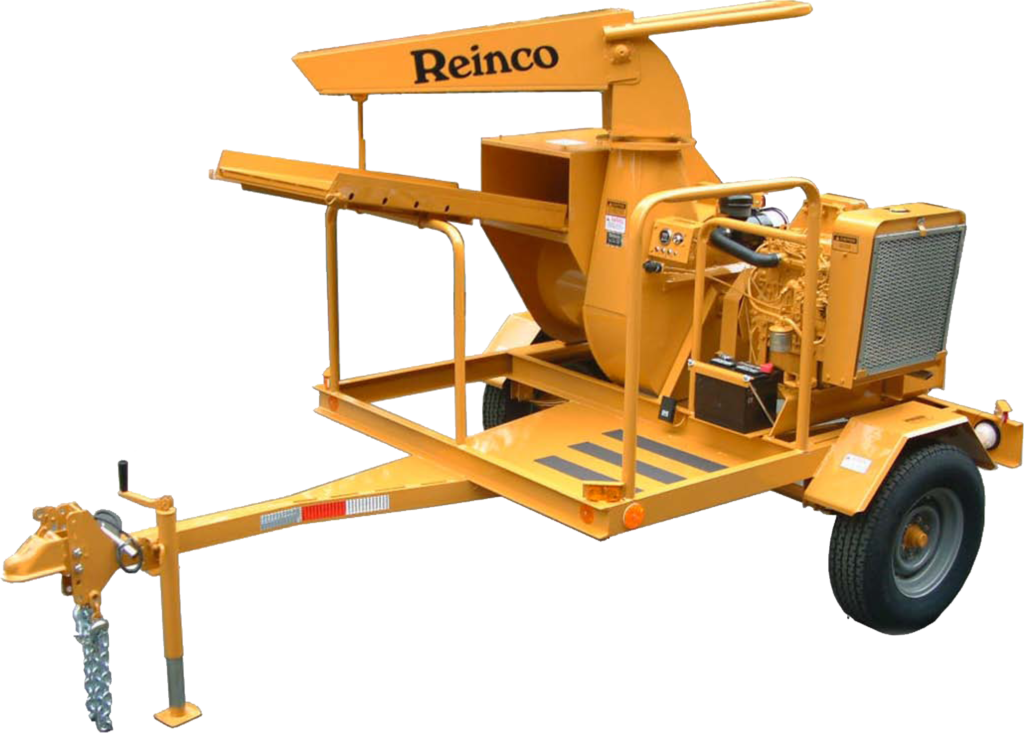

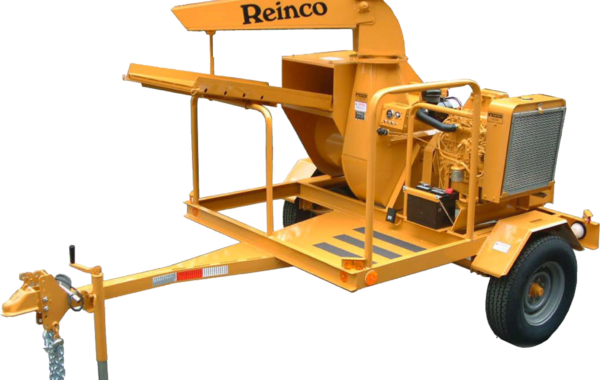

The Reinco TM35 PowerMulcher will rival the output of larger machines with rated bale capacity for up to seven tons of hay or straw per hour and direct discharge of up to 65 feet. This rugged, high performance machine features a improved mulch separation and high productivity rates. Two to three acres or more can be mulched in an hour or less. With optional accessories this machine can be used year round for leaves and light debris cleanup and placement of other landscape materials. For years of dependability, demand Reinco PowerMulching machinery!

• 49 hp Kohler Diesel Engine
• 7 Ton Per Hour Mulch Output
• Discharge Distance 65 Feet in Still Air
• Discharge and Suction Hose Options
• Granular Broadcast Option
• Optional Trailer Adds Versatility
• Optional Fork Pockets

Manually fed flakes of average dry mulch results in an output of up to seven tons per hour.  Direct discharge range in still air is 65 feet.

Patented high volume beater drum (thrashing chamber) with raised inlet is contoured to eliminate debris kixk back and configured to place flailing stations below line of sight.

The TM35 is a self contained, portable machine, consisting of electrically welded modular components secured with plated self locking fasteners, mounted on a fabricated steel base.

Engine power is reliably transmitted directly via flexible coupling to the blower.  As with all Epic mulchers, our proven direct drive eliminates chains, belts, tensioners, and clutches, and puts all the engine power to work!

Fully adjustable flail stations are mouned in common on the heavy-duty beater shaft.  Access for flail adjustment is through a removable rear drum panel.

Formed cold finish discharge boom with center pivot bearing mounts to self lubricating nylon bearing for unrestricted 360º horizontal rotation.  Heavy formed handle bar provides responsive 60º control of vertical placement.  Rolling polyurethane top and bottom seals with stainless steel side wipers insure operator comfort.

Standard four cylinder, heavy-duty, water cooled, Tier 3 emissions certified diesel engine, equipped with 12V ignition, battery, alternator, and starter, and a two-year manufacturer commercial engine warranty.  Supplied with dual element dry type air cleaner, governor, and chaff screen as standard.  Keyed ignition, hour meter, ammeter, oil pressure, and coolant fault lamps are cluster mounted on the engine panel.  A quick setting vernier type, weather-proof throttle is mounted for operator access.

Fuel tank capacity is 12 gallons.

The skid mounted TM35 has a removable single section feed tray to feed mulch to thrashing chamber, then easily mounts to the beater drum for storage and transport.

The TM35X includes a structural trailer frame with a fixed work deck with slip free footing and 40″ safety railings.  It includes an extendable two piece feed tray that extends and locks to adapt for various tailgate overhangs, then retracts and locks for storage and transport.

A foot operated signal horn provides on-site communication between vehicle operator and crew.

Machine primed and then finished in Epic lead free yellow modified acrylic final topcoat. Accessories are furnished plated or finish painted: complete with operating and safety decals.
