Standard Duty Bedding Trench Box

Specifications

Standard Duty Bedding Trench Box

The GME Bedding boxes offer a way for end users to increase profits and material utilization. Built to hold a wide range of products and accommodate a variety of excavator buckets, the GME Boxes are designed in three different categories: Light Duty (BL), Standard Duty (BS) and Heavy Duty (BH). Custom sizes are also available in all three categories.

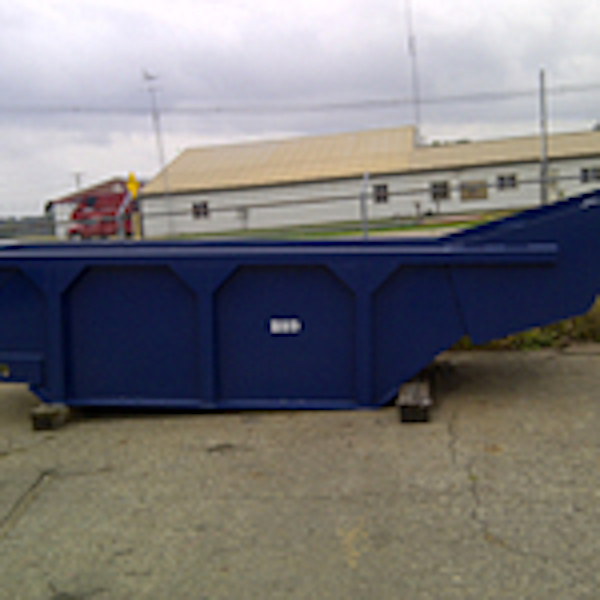

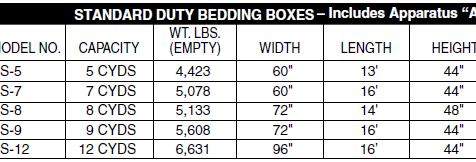

BS5, BS7, BS8, and BS9. The Standard bedding box unit features rugged steel welded construction, fully reinforced at all points of stress. The top frame is further strengthened by an inner core of hardwood. This unit is constructed of 1/4″ sides and ends, and the bottom surface is smooth; fabricated of 1/2″ steel plate, with wear strips on the inside to guard against damage by bucket teeth. Low 44″ profile allows dump truck to fill the box from either end or side.
Custom sizes are available.



Find a Location

Griswold Machine & Engineering Bedding Box Models
